Voyage

Row

Voyage is a beam-type seating system. It provides dynamic and durable seating solution for airports, stations, malls and museums. Voyage is available in two or more seats according to your requirement with steel or cushioned or upholstered seats and PU integral foam pads. The seats are perforated steel finished in epoxy powder coating for easy maintenance.

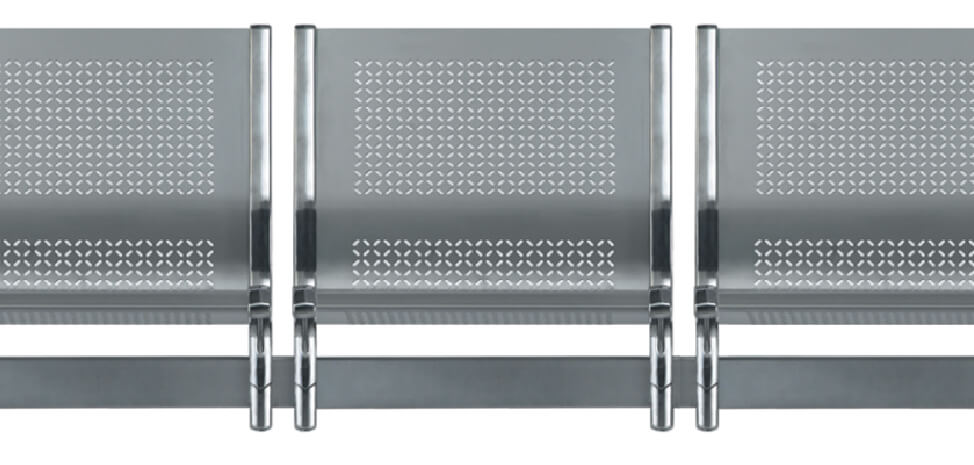

Appearance

The seats are perforated steel finished in epoxy powder coating for low maintenance.

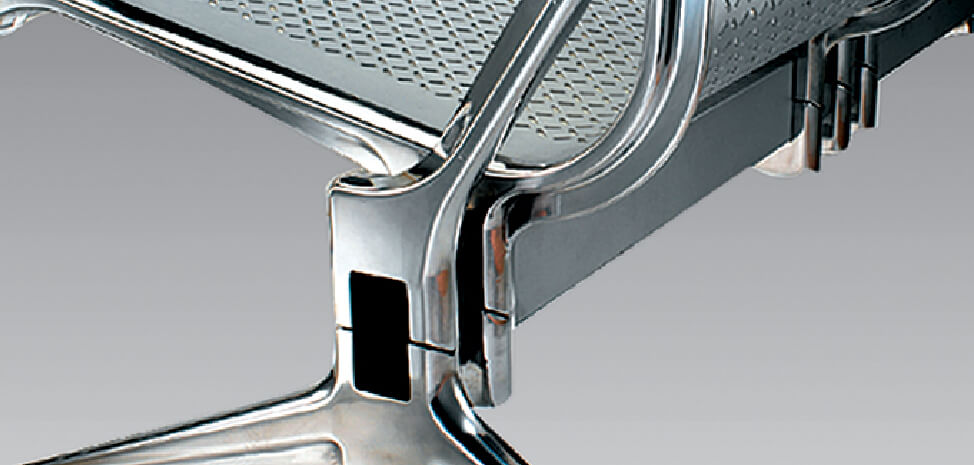

Sustainability

The seats are mounted on a rectangular steel beam which allows long runs of seating.

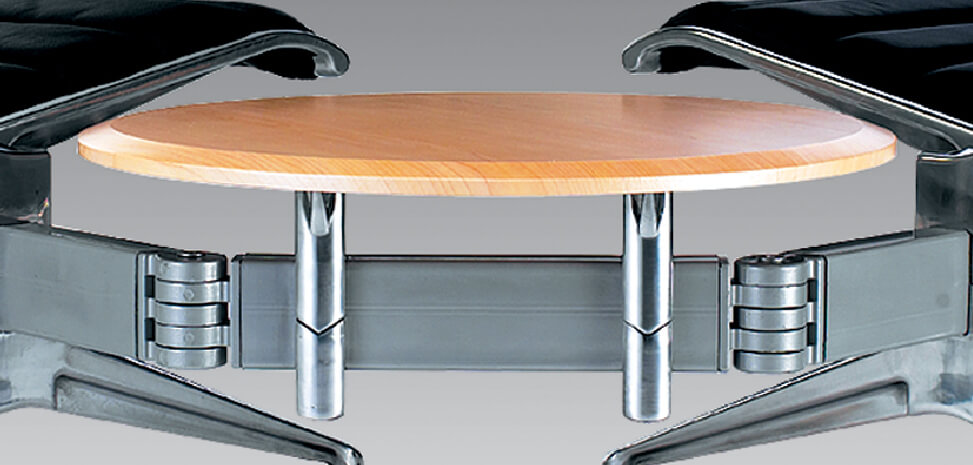

Flexibility

Individual seats can be linked together via a swivel joint at any angle with the turn table positioned on top of it.

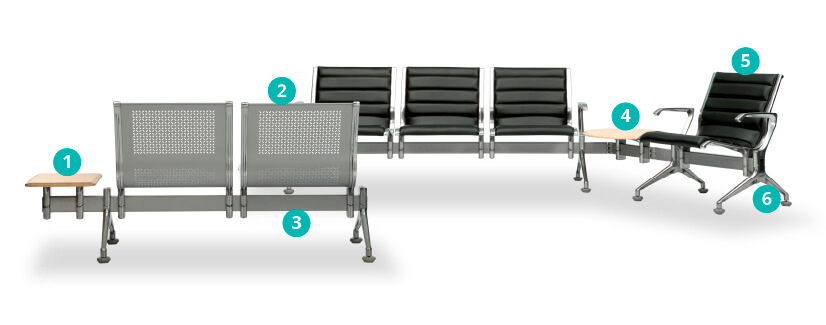

Specification

Side Table
Laminated table top in 18mm thickness, comes with PVC edging.
Seat Shell
Formed by 2.0mm cold-rolled steel plate. Seat shell is supported by cast aluminium. Finished in epoxy powder coating.
Beams
Rectangular steel hollow section in 76 x 38 x 2.3mm. The finish and the colour will be the same with the body shape.
Swingable Table
Individual benches can be linked together via a swivel joint at any angle with the turn table positioned on top of it.
Backrest / Seat Pads
Upholstery pads can be finished in PVC, leather or fabric. Upholstery material bonded to polyurethane foam and coated steel plate as inner support. PU integral foam pads are moulded using self skinning Polyurethane foam over an internal plywood shell, black comes as standard. Other colour available, subject to order quantity requirements.
Component
Armrest, leg and frame components are diecast aluminium to combine beauty and durability.

G150 B1 A00 J

G150 B2 A00 J

G150 B3 A00 J

G150 B4 A00 J

G150 B5 A00 J

G150 B6 A00 J

Accessories

Without Armrest

(A00)

With Armrest

(A28)

USB & Power Outlet Kit

(P3 A)

Wire Cover Kit

(P3 B)

Side Table W330 x L510mm

(TS1)

Turntable Dia. 560mm

(TT1)

Footrest

(FT)

Back to Back Link

(L8)
